Description
- The frame of the Italian Bonsegna slurry tankers is made of stainless steel painted IPE. Long-life tanks are characterized by their durability – they are galvanized on the outside and inside;
- Ballast vacuum pumps;
- Slurry tankers chassis can be selected from 2 to 3 axles;
- Choice for steerable axle
- Pneumatic or hydraulic brakes;
- Variations of slurry filling: from mechanical to automatic;
- Selection of slurry tanker from 2200 to 30000 liters
- Slurry applicator can be aditionally selected for slurry insertion and spreading
STANDARD SLURRY TANKER |
| ✅ Reinforced painted steel frame |
| ✅ Galvanized tank |
| ✅ Side hose holder |
| ✅ Safety valves |
| ✅ Lighting System with Beacon |
| ✅ Suitable for wastewater transportation |
 |  | ||||||||
TWO-AXLES | THREE-AXLES | ||||||||
| SPECS | CMB142.11 5 SPTMR | CMB142.12 7 SPTMR | CMB142.14 0 SPTMR | CMB142.16 0 SPTMR | CMB200.16 0 SPTMR | CMB200.20 0 SPTMR | CMB200.25 0 SPTMR | CMB200.27 0 SPTMR | CMB200.30 0 SPTMR |
| ✅ Max load | 18t. +4t. | 18t. +4t. | 18t. +4t. | 18t. +4t. | 27t. +4t. | 27t. +4t. | 27t. +4t. | 27t. +4t. | 27t. +4t. |
| ✅ Tank capacity | 11.500 | 12.700 | 14.000 | 16.000 | 16.000 | 20.000 | 25.000 | 27.000 | 29.700 |
| ✅ Pump | 13.500 | 13.500 | 13.500 | 13.500 | 16.000 | 16.000 | 16.000 | 16.000 | 16.000 |
| ✅ Rear opening valve 85cm | 850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| ✅ Rear hydraulic valve | Hydraulic | Hydraulic | |||||||
| ✅ Brakes | Pneumatic | Pneumatic | |||||||
| ✅ Axis square, mm | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| ✅ Brakes | 406×120 | 406×120 | 406×120 | 406×120 | 406×120 | 406×120 | 406×120 | 406×120 | 406×120 |
| ✅ Pins, pcs. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| ✅ Number of axles | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
| ✅ Steering axle | Rear | Rear | Rear | Rear | Front and rear | Front and rear | Front and rear | Front and rear | Front and rear |

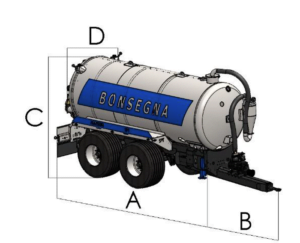

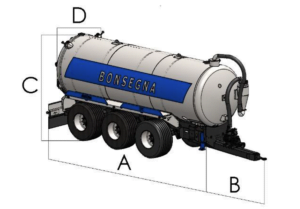

| ✅ Tank length m | 5.55 | 5.55 | 5.55 | 5.55 | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 |
| ✅ Tank width m | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 |
| ✅ Slurry tanker length, m | 7.65 | 7.65 | 7.65 | 7.65 | 9.15 | 9.15 | 9.15 | 9.65 | 9.65 |
| ✅ Slurry tanker height, m | 3.25 | 3.25 | 3.25 | 3.55 | 3.40 | 3.60 | 3.80 | 3.80 | 4.00 |
